Hammer Mills: 5 Key Styles You Need to Know About

Posted by Cassie Brown

Apr 12, 2012 3:50:00 PM



You Need a Hammer Mill for That…

So, you have a material that you would like to make smaller for a given purpose. Sounds simple, right?  Well, in most cases it is. However, there are a number of considerations that must be made to get you to the finish line in the most efficient and  most economical way.

But First a Little Background

Hammer mills are just one type of machinery among the much larger category of size reduction equipment that also includes:  shredders, jaw crushers, ram fed grinders, roll mills, ball mills, and more. Looking a bit closer, even within hammer mills, there are several styles to choose from. Among those styles, the functionality of a hammer mill remains basically the same:
  • Material is fed into a grinding chamber
  • Contact with moving hammers, and interior mill components reduce the material’s size
  • Material remains in the hammer mill’s grinding chamber until it is able to pass through a screen or grate with certain size openings.
The following is a comparison of five key styles of hammer mills:



Gravity Discharge Industrial Hammer Mills

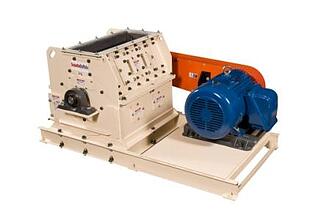

Industrial hammer mills have the simplest and most recognizable funtionality. A rectangularindustrial hammer mill steel chamber houses a shaft to which swinging hammers are attached. As the shaft rotates at high speed, the hammers flail out impact the material. In addition to the hammers, size reduction occurs through particle on particle contact and through contact with the breaker plate inside the grinding chamber. Because of their simplicity, the industrial hammer mill is easily adaptable to different sizes and milllab scale hammer mill  designs.
Important to know: Replaceable steel liner plates protect the mill's interior from wear caused by grinding abrasive materials.
Ideal Applications: glass, coal, coke, dry chemicals, metals, resin, porcelain, aggregates, brass, ceramics.






Pneumatic Discharge Hammer Mills

The grinding mechanism of this group is quite simliar to the gravity discharge hammerhigh production industrial grindermills. However, the pneumatic mills typically use a thinner hammer and the interior wall of the grinding chamber features a ribbed liner plate. This plate has a washboard effect on the material, and works in unison with the hammers and particle on particle impact to reduce the material. finish grinding hammer mill with integral fanThe biggest difference of course is the group's the use of air assitance to evacuate material from the mill. Whether attached to the main mill shaft, or as a separate optional component in a high production model, the fan pulls the the material through the mill, and conveys it to storage.
Important to know:  Specially designed notched hammers are ideal for tearing and shredding. In addition to assisting the evacuation of  light or low density materials, the pneumatic suction can increase throughput up to 400% over gravity discharge hammer mills.
Ideal Applications:  hogged wood scrap, wood chips, green wood, biomass, paper, carpet, meat and bone meal



Full Circle Screen Hammer Mills

This next group also features the same grinding mechanism as the first two, and the same thin hammers as the pneumatic hammer mills. The amount of screen coverage is what sets the full circle screen hammer mills apart.
high production full circle screen hammer mill The nearly 300 degree coverage of the rotor translates to a greater surface area for the processed material to evacuate the grinding chamber. As a result, compared to the industrial mills, you get greater throughput per horsepower with full circle screen hammer mills.
diagram of circ-u-flow screen coverageImportant to know: To achieve the circular, nearly full coverage of the rotor requires that the screen be somewhat pliable and therefore relatively thin. Because of this, the full circle screen mill is best suited for light, easy to grind materials to that do not require initial grinding against a breakerplate.
Ideal Applications: corn, grain, spices, grasses, planer shavings, sawdust



Horizontal Infeed Hammer Mills

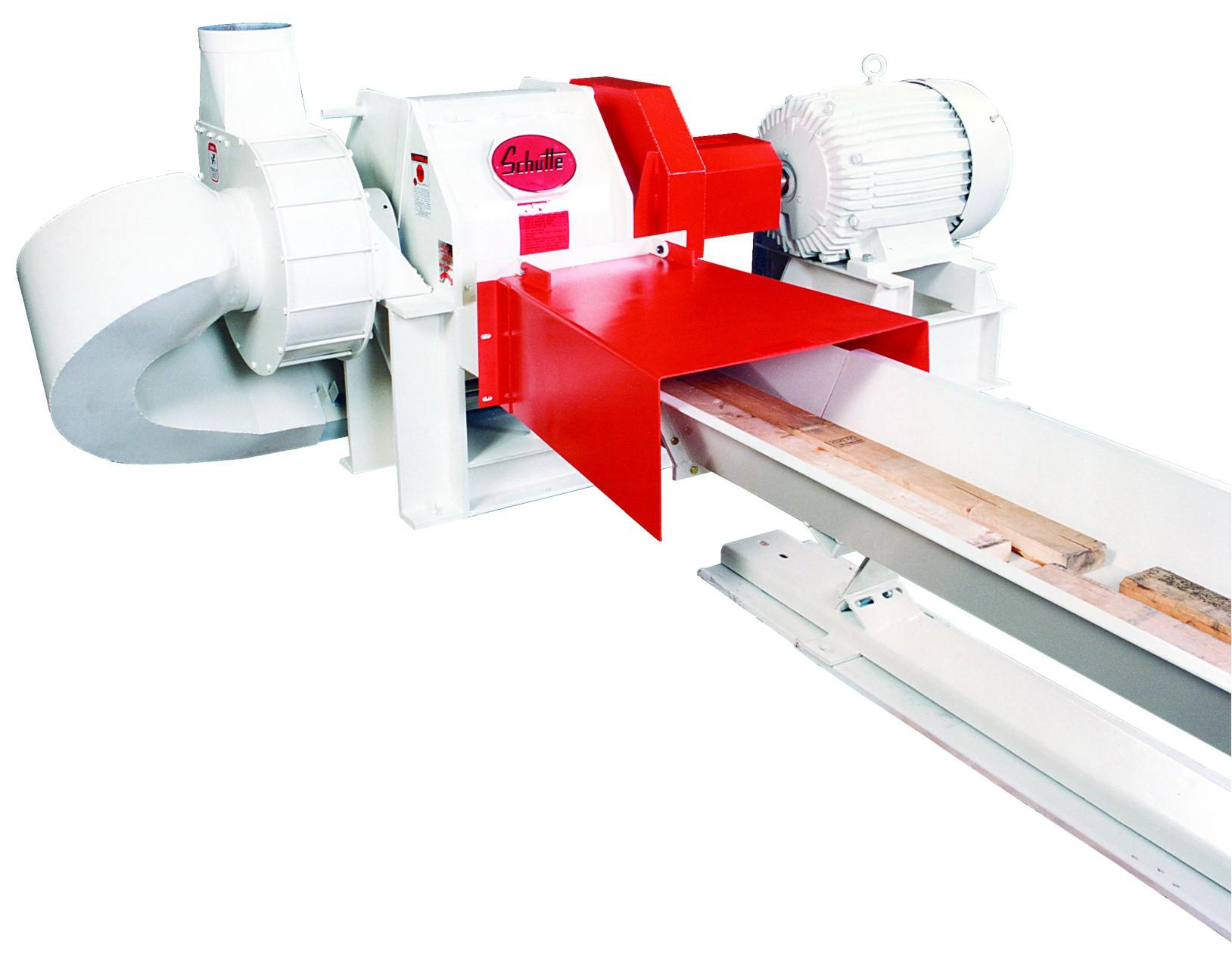

The unique quality of the horizontal infeed mills is that material is fed into the side of the hammer mill, instead of the top. This design makes them ideal for long, linear or horizontal trim scrap grinderotherwise large, geometric materials to be processed with out a pre-grind. This group includes trim scrap grinders and pallet grinders. As with the prior styles, the horizontal mills use heavy duty screens covering the discharge area to determine finished particle size.
Important to know:  the style and design of the hammers aggressively moves the material into the mill. Feed rolls are ideal to properly control the rate that material enters the grinding chamber.
Ideal Applications: trim scrap, truss palnt scrap, 2x4s, whole pallets, pallet scrap



Lumpbreakers

The Lumpbreaker is quite different from the prior categories in both designsingle rotor lump breaker and functionality. Instead of swinging hammers attached to a shaft rotating at high speed, the lumpbreaker has stationary hammers attached to a slower moving shaft. As the shaft rotates, the hammers remain rigid, and pass between combs attached to the wall of the grinding chamber. Lumpbreakers do not use screens for sizing. Instead, the configuration of spacing between the hammers and combs, along with hammer size and RPM allows some control over the finished particle size.
Important to know: The open infeed, fixed hammers and slow shaft rotation give the lumpbreaker the ability to accept a certain amount of a headload, making it suitable for large blocky materials, de-agglomerating, de-lumping, and returning materials to a flowable consistency.
Ideal Applications: sugar, cement, dry chemicals, agglomerated powders
